Cr20Ni30 Alloy Wire for Effective Water Electrolysis Hydrogen Generation

Cr20Ni30 Alloy Wire for Effective Water Electrolysis Hydrogen Generation

Marchio:	DLX
Numero di modello:	Filo di nichelcromo Cr20Ni30
Moq:	10kg
Condizioni di pagamento:	L/C,D/A,D/P,T/T,Western Union
Capacità di approvvigionamento:	500 tonnellate al mese

Informazioni dettagliate

Descrizione di prodotto

Informazioni dettagliate

Luogo di origine:

Cina, Jiangsu

Certificazione:

Ce,Rohs

Capacità di alimentazione:

500 tonnellate al mese

Evidenziare:

Cr20Ni30 alloy resistance wire

hydrogen generation resistance wire

water electrolysis alloy wire

Descrizione di prodotto

In the race for cleaner energy solutions, hydrogen generation via water electrolysis has emerged as a promising method for producing sustainable hydrogen. As the global energy landscape shifts towards greener alternatives, the materials used in electrolysis systems are becoming more critical than ever. Among the key materials used in this process is the Cr20Ni30 Alloy Wire, an advanced and highly effective solution for hydrogen generation. DLX Company is proud to offer this high-performance wire, designed to ensure efficiency, durability, and reliability in water electrolysis applications.

Product Introduction

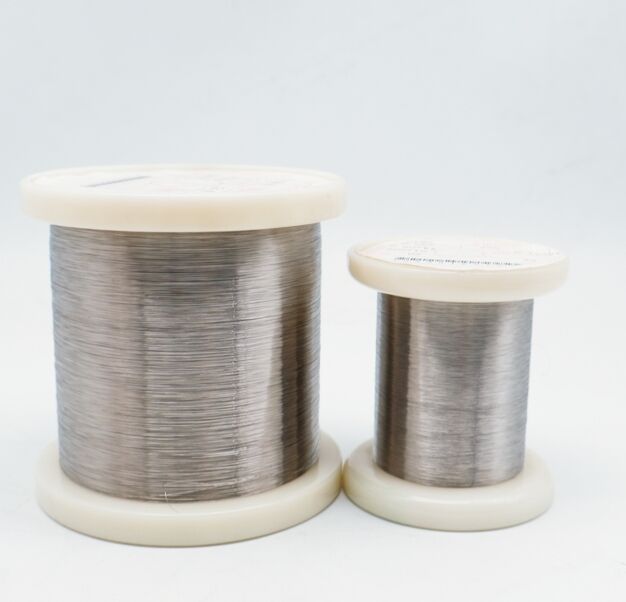

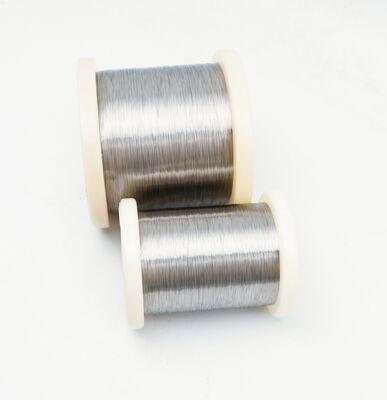

The Cr20Ni30 Alloy Wire, commonly referred to as Nichrome Wire, is made from a unique blend of 20% chromium and 30% nickel, offering excellent resistance to both high temperatures and corrosion. These properties make it an ideal choice for electrolysis systems where hydrogen is generated through the splitting of water into hydrogen and oxygen.

The electrolysis process can be harsh on materials, subjecting them to high temperatures, electrical currents, and corrosive electrolytes. The Cr20Ni30 Alloy Wire is engineered to handle these conditions with ease, making it a preferred material in industrial hydrogen production, as well as in research and development for new energy systems.

DLX's Cr20Ni30 Alloy Wire is designed not only to optimize the electrolysis process but also to reduce long-term operational costs by improving the system's overall efficiency and lifespan. Our wire's superior properties ensure that your electrolysis systems can perform reliably and efficiently over an extended period.

Material Performance Comparison

Performance / Material	Cr10Ni90	Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Ni	90	Rest	Rest	55.0~61.0	34.0~37.0	30.0~34.0
Cr	10	20.0~23.0	28.0~31.0	15.0~18.0	18.0~21.0	18.0~21.0
Fe	--	≤1.0	≤1.0	Rest	Rest	Rest
Maximum temperature ℃	1300	1200	1250	1150	1100	1100
Melting point ℃	1400	1400	1380	1390	1390	1390
Density g/cm³	8.7	8.4	8.1	8.2	7.9	7.9
Resistivity at 20℃ (μΩ*m)	--	1.09±0.05	1.18±0.05	1.12±0.05	1.00±0.05	1.04±0.05
Elongation at rupture	≥20	≥20	≥20	≥20	≥20	≥20
Specific heat (J/g.℃)	--	0.44	0.461	0.494	0.5	0.5
Thermal conductivity (KJ/m.h℃)	--	60.3	45.2	45.2	43.8	43.8
Coefficient of linear expansion a×10⁻⁶/(20~1000℃)	--	18	17	17	19	19
Micrographic structure	--	Austenite	Austenite	Austenite	Austenite	Austenite
Magnetic properties	--	Non-magnetic	Non-magnetic	Non-magnetic	Weak magnetic	Weak magnetic

Available Shapes and Sizes

Shape	Size (mm)
Wire	0.05-7.5
Rod	8-50
Ribbon	(0.05-0.35)×(0.5-6.0)
Strip	(0.5-2.5)×(5-40)

Key Features and Benefits

Exceptional Corrosion Resistance
One of the most significant advantages of Cr20Ni30 Alloy Wire is its outstanding resistance to corrosion. During the electrolysis process, electrodes are exposed to highly corrosive environments, especially in alkaline or acidic electrolytes. The chromium and nickel content in the wire creates a robust oxide layer that protects the wire from corrosion, significantly enhancing its lifespan.
High-Temperature Resistance
Water electrolysis requires high temperatures to accelerate the reaction, which can cause traditional materials to degrade quickly. The Cr20Ni30 Alloy Wire has a high melting point of 1400°C, allowing it to perform effectively even under extreme conditions without failure.
Efficient Electrical Conductivity
The wire offers excellent electrical conductivity, ensuring that the electrolysis process runs with minimal energy loss. This translates to higher efficiency, meaning less energy is needed to produce the same amount of hydrogen, reducing overall operational costs.
Durability and Longevity
With superior tensile strength and the ability to withstand high mechanical stresses, this alloy wire is incredibly durable, reducing the need for frequent replacements and ensuring that hydrogen production remains uninterrupted for extended periods.
Versatile Applications
Beyond hydrogen production, Cr20Ni30 Alloy Wire is used in a wide variety of high-temperature applications, including industrial heating elements and other systems requiring reliable electrical resistance under extreme conditions.

Industry Analysis

The hydrogen economy is rapidly gaining momentum, driven by the push for cleaner energy solutions and the shift towards renewable energy. Hydrogen, as a clean fuel, is expected to play a pivotal role in decarbonizing sectors like transportation, industry, and power generation.

The market for hydrogen production via electrolysis is expected to grow significantly in the coming years. As governments around the world ramp up their commitments to reduce carbon emissions, hydrogen production using renewable energy sources is seen as a key solution to achieving these goals. The global demand for water electrolyzers is expanding, and with it, the need for advanced materials like Cr20Ni30 Alloy Wire to ensure the efficiency and longevity of electrolysis systems.

Hydrogen production via electrolysis is set to become one of the most significant methods of sustainable hydrogen generation, and the right materials are essential for driving the technology forward. DLX Cr20Ni30 Alloy Wire offers the perfect balance of performance, durability, and cost-effectiveness for this rapidly evolving industry.

Applications of Cr20Ni30 Alloy Wire

Hydrogen Production via Electrolysis: This is the primary application for Cr20Ni30 Alloy Wire. It is used in the electrolysis of water, where it serves as the electrode material, facilitating the efficient splitting of water molecules into hydrogen and oxygen.
Industrial Heating Elements: Due to its high-temperature resistance, Cr20Ni30 is also used in the production of heating elements for furnaces, kilns, and other high-temperature industrial processes.
Chemical Reactors and High-Heat Applications: Cr20Ni30 Alloy Wire is also utilized in chemical reactors that operate under high temperatures and require materials that can withstand corrosive environments while maintaining structural integrity.
Electric Boilers and Heating Systems: The alloy is ideal for high-performance heating systems where reliable and efficient electrical resistance is essential.

Why Choose DLX Company?

DLX Company is recognized as a leading supplier of high-quality materials for energy applications, with a particular focus on providing advanced solutions for hydrogen production. We understand the complexities and challenges of the hydrogen production process and are committed to providing the best materials that meet the highest standards of performance.

Expertise in Hydrogen Technologies: With years of experience in providing high-quality materials for the energy sector, DLX is well-positioned to meet the demands of the hydrogen economy. Our team works closely with clients to ensure that every product is tailored to their specific requirements.
Consistent Product Quality: DLX ensures that every Cr20Ni30 Alloy Wire is manufactured under strict quality control procedures, guaranteeing a product that performs reliably under the most demanding conditions.
Customization for Specific Needs: Whether you need a particular wire diameter, length, or resistance value, DLX can customize our alloy wire to suit your project needs, ensuring optimal performance in your electrolysis systems.
Competitive Pricing: As a global supplier, DLX leverages its extensive supply chain to offer high-quality materials at competitive prices, helping you maximize the value of your investment.
Sustainability Commitment: At DLX, we are committed to advancing clean energy solutions. By providing efficient and long-lasting materials for hydrogen generation, we contribute to the growth of sustainable energy systems worldwide.

Frequently Asked Questions

What is Cr20Ni30 Alloy Wire made from?
It is made of 20% chromium and 30% nickel, which provides excellent corrosion and temperature resistance, ideal for electrolysis systems.
How does Cr20Ni30 Alloy Wire improve hydrogen production?
Its superior resistance to corrosion and high-temperature performance ensures the wire can withstand the harsh conditions of electrolysis, leading to more efficient hydrogen production.
Is Cr20Ni30 Alloy Wire suitable for other applications?
Yes, it is also used in industrial heating elements, high-temperature chemical reactors, and electric furnaces due to its excellent high-heat performance.
What are the key benefits of using Cr20Ni30 Alloy Wire in electrolysis systems?
The wire offers corrosion resistance, high-temperature durability, and efficient electrical conductivity, which all contribute to a more reliable and cost-effective electrolysis system.
How long will Cr20Ni30 Alloy Wire last?
The wire is designed for long-term use, with its durability and corrosion resistance significantly extending its lifespan compared to other materials.
Can the wire be customized to specific project needs?
Yes, DLX can tailor the wire specifications to meet your unique project requirements, such as diameter, length, and resistivity.
What is the maximum temperature Cr20Ni30 Alloy Wire can handle?
The wire can handle temperatures up to 1200°C, making it suitable for high-temperature electrolysis and other industrial applications.
Why choose DLX for Cr20Ni30 Alloy Wire?
DLX offers expertise, consistent quality, customizable solutions, and competitive pricing, ensuring the best performance and value for your hydrogen production systems.
